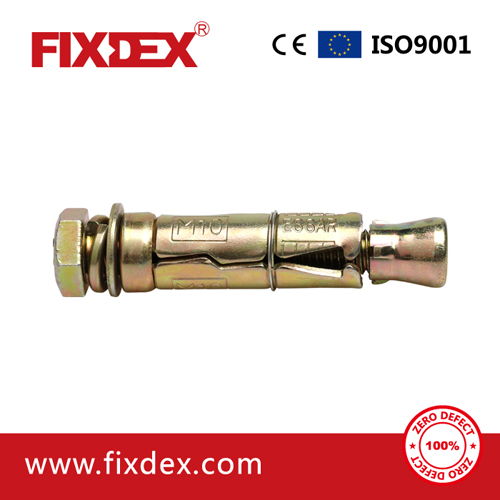

→ It is made of steel pressed used to concrete is appreclated. High retaining power can be removed easily .
→ When tightening the nut or screw the conical part is pulled into the anchor shells expanding it .
Using a drill which Clear the hole Expand Anchor
equals the anchor and insert by tightening
diameter, drill hole the anchor nut or head
min embedment
Anchor size |
Anchor Length |
Drill Dia. |
Drill Depth |
Setting Depth |
M6 |
45 |
12 |
50.0 |
45.0 |
M8 |
50 |
14 |
55.0 |
50.0 |
M10 |
55 |
16 |
60.0 |
55.0 |
M12 |
70 |
20 |
75.0 |
70.0 |
