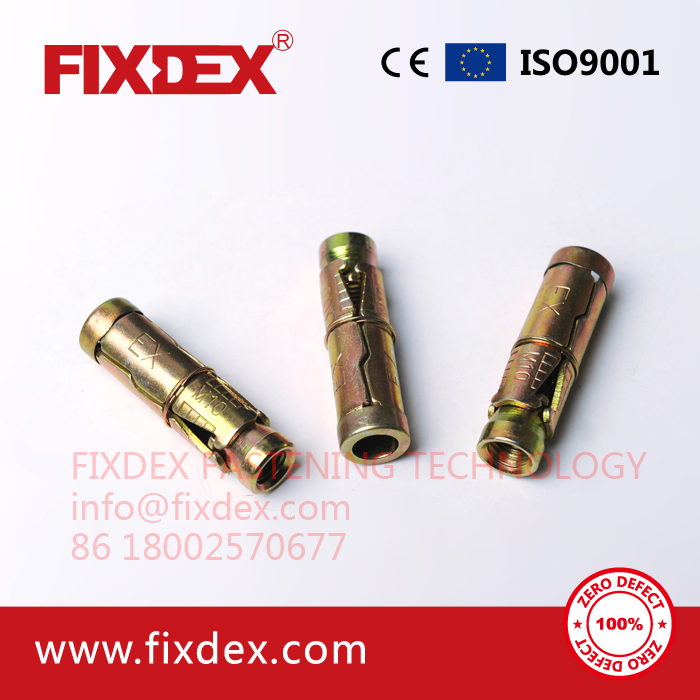

3pcs heavy duty shield anchor

FOB Reference Price：Get Latest Price

Material：

Steel

Finshing：

Yellow zinc

Specifications：

M6×45 M8×50 M10×60 M12×75 All 4 Options

Quantity：

Payment Terms：

LC,TT

 Favorites

Share

FIXDEX FASTENING TECHNOLOGY CO.,LTD.

Manufacturer

Tel：

86-310-18002570677

Fax：

86-310-18002570677

QQ：

613605600

Email：

info@fixdex.com

Product Details

Basic Info

Material

Steel

Surface Treatment

Yellow zinc

Thread

M-thread

Locking

Cross-knurl

Shank

Reduced shank

Point

Tubular end

Brand

FIXDEX

Unit

piece

Ex-drive

Countersunk head

Surface Treatment

Yellow zinc

Code

A2C

Description

Yellow zinc, not bright surface

Thickness

5um

Appearance

Dull,yellowish gleaming to yellow-brown,iridescent

NSSWhiteRust

NSSRedRust

Product Description

→ It is made of pressed used to concrete is appreciated.
→ The retaining power can be removed easily
→ When tightening the nut or screw the conical part is pulled into the anchor shells expanding it.

Using a drill which   Clear the hole      Expand Anchor
equals the anchor   and insert    by tightening
diameter, drill hole the anchor    nut or head
min embedment

nchor size	Anchor Length (mm)	Drill Dia. (mm)	Drill Depth (mm)	Setting Depth min(mm)
M6	45	12	50.0	45.0
M8	50	14	55.0	50.0
M10	60	16	65.0	60.0
M12	75	20	80.0	75.0
M16	110	25	115.0	110.0
